Want to be self sufficient on your vessel, but don’t have a lot of room?
*Models available for diesel and gasoline powered vessels

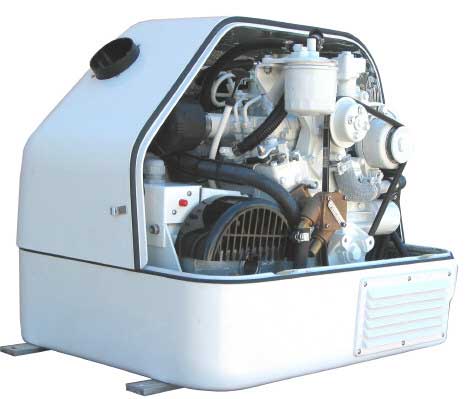

Next Generation’s UCM-1 3.5kW generator is one of the most compact, lightest and efficient generators of it’s kind. Perfect for small spaces on your power or sailboat.
Operating at a unique mid-speed of 2800rpm provides low sound and vibration levels, while extending this generator’s lifespan. This is made possible by the rigid engine to generator attaching plate, combined with a state-of-the-art helical style timing drive system, providing an AC output of 60Hz.
Equipped with fully fresh water marinated 7 hp Kubota diesel engine for trouble-free operation. Average fuel consumption to just 2/10 GPH. This engine uses a horizontal design, making this generator the lowest profile on the market.
While most generators of this size can’t run air conditioners and motors due to their low horsepower, this generator uses a heavy duty 5.0KVA generator end, allowing connection to easy starts for air conditioners (up to 16,000 BTUs) and motors.
Available in standard version for diesel vessels, or Ignition Protection Certified version for gasoline powered vessels.
Features:
- Cupro-Nickel Heat Exchanger
- Unit mounted self priming impeller pump
- Stainless steel water cooled exhaust mixer
- Air cleaner/intake silencer
- Oil pressure & water temperature safety shutdown
- Extra wide timing drive system
- 12 volt electric fuel pump
- Extra resilient four point isolation mounts
- “Easy Drain” oil change system removable/cleanable oil filter
- Front side service
- Marine grade tinned wire
- Fuel filter
- Main breaker
- Beltguard
- Remote start panel with hour meter and harness
Options:
- Ignition Protection Certification
- Sound Enclosures
- 20′ or 30′ Wire Harness
Specifications:
| Type | Horizontal, Water-cooled 4 Cycle Diesel Engine |
| Dry Weight | 160 lbs (w/o sound enclosure) |
| 200 lbs (w/ sound enclosure) | |
| Dimensions | 28″ L x 15.5″ W x 15″ H (w/o sound enclosure) |
| 30″ L x 18″ W x 16.5″ H (w/ sound enclosure) | |
| # of Cylinders | 1 |
| Bore x Stroke | 2.95 x 2.76 In |
| Displacement | 18.86 Cu. In. |
| SAE net intermittent | 7/2800 HP/rpm |
| Combustion System | Spherical |
| Compression Ratio | 23:1 |
| Fuel Injection Pump | Bosch “mini” type |
| Nozzle | Bosch “throttle” type |
| Cooling System | Fresh Water Heat Exchanger |
| Lubricating System | Forced by trochoid pump |
| Fuel | ASTM #2 Diesel or equivalent |
| Lubricating Oil | Quality better than API service CE class |
| Fresh Water Capacity | 1.2 qt. |
| Lubricating Oil Capacity | 1.0 U.S. qt |
| Starting System | 12V Battery |
| Charging System | None |
| Fuel Line Diameter | 5/16″ |
| Return Line Diameter | 1.4″ |
| Exhaust Diameter | 1 1/2″ |
| Output Voltage | 120/240 |
| Output AMPS | 30/15 |
| Output Watts | 3500 |
