5.5kW Marine Generator

Our 5.5kW generator is the most compact of it’s class! Perfect for small vessels, or as a back up generator for large vessels!

*Models available for diesel and gasoline powered vessels

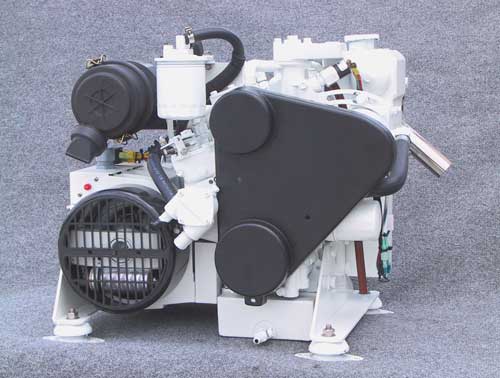

Next Generation’s 5.5kW diesel generator is the most compact and shortest of its kind, allowing it to fit in small spaces where most generators wouldn’t be able to.

Operating at a unique mid-speed of 2800rpm provides low sound and vibration levels, while allowing this generator to last a long time.

Comes equipped with fully fresh water marinated 10 hp 2-cylinder Kubota diesel engine for trouble-free operation. With an output of 60Hz, this generator provides enough energy to run several appliances and electronics devices, as well as two standard heating/cooling units – all at the same time.

Available in standard version for diesel vessels, or Ignition Protection Certified version for gasoline powered vessels.

Features:

Cupro-Nickel heat exchanger
Water cooled exhaust manifold
Direct driven self priming sea water pump
Stainless steel water cooled exhaust mixer
Air cleaner/intake silencer
Oil pressure & water temperature safety shutdown
Helical offset tooth timing drive system
120/240 V Generator
12 volt electric fuel pump
Extra resilient four point isolation mounts
“Easy Drain” oil change system removable/cleanable oil filter
Front side service
Marine grade tinned wire w/ heat shrink terminals
Remote start panel with hour meter and harness

Options:

Ignition Protection Certification
Sound Enclosures
Full Instrumental Panel
20′ or 30′ Wire Harness

Specifications:

Type	Vertical, Water-cooled 4 Cycle Diesel Engine
Dimensions	23″ L x 17″ W x 20″ H (w/o sound enclosure)
	25.5″ L x 20″ W x 22″ H (w/ sound enclosure)
Dry Weight	230 lbs (w/o sound enclosure)
	270 lbs (w/ sound enclosure)
# of Cylinders	2
Bore x Stroke	2.64 x 2.68 In
Displacement	479 CC
SAE net intermittent	11/2800 HP/rpm
Combustion System	Three Vortex
Compression Ratio	23:1
Fuel Injection Pump	Bosch MD “mini” type
Nozzle	Bosch “throttle” type
Cooling System	Fresh Water Heat Exchanger
Lubricating System	Forced lubrication w/ filter
Fuel	#2 Diesel or equivalent
Lubricating Oil	Quality better than API service CD or CE class
Lubricating Oil Capacity	2.2 U.S. qt
Starting System	12V Battery
Charging System (optional)	10 AMP (optional)
Fuel Line Diameter	5/16″
Return Line Diameter	1.4″
Exhaust Diameter	1 1/2″
Output	120/240 V
Output AMPS Intermittent	46/23 AMPS
Output AMPS Continuous	42/21 AMPS
Output Watts Intermittent	5500 Watts
Output Watts Continuous	5000 Watts
