Looking for a compact generator for your medium vessel, or a secondary one for your large vessel?
This 9.5kW generator is unique and compact, but doesn’t compromise on power and efficiency.

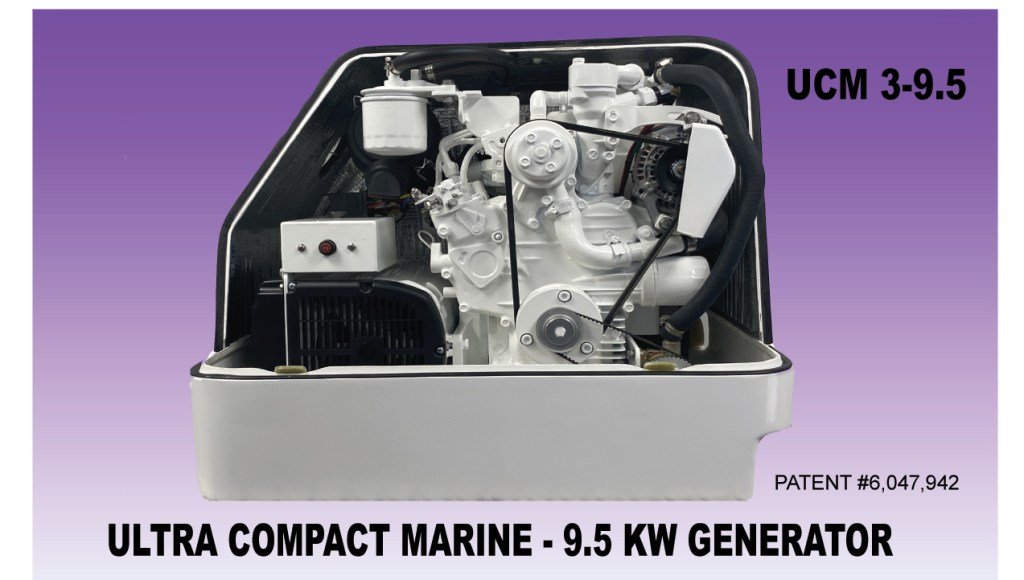

Next Generation’s 9.5kW diesel generator is able to fit in small spaces where most generators wouldn’t be able to.
Operating at a unique mid-speed of 2800rpm provides low sound and vibration levels, while prolonging the life of this generator. It’s highly efficient three vortex combustion system has a high power output, burns left fuel than other generators, and has a cleaner burning exhaust.
Comes equipped with fully fresh water marinated 3-cylinder Kubota diesel engine for trouble-free operation. This generator provides enough energy to run several appliances, electronics devices and air conditioning units simultaneously.
Available in standard version for diesel vessels, or Ignition Protection Certified version for gasoline powered vessels.
Features:
- Cupro-Nickel heat exchanger
- Water cooled exhaust manifold
- Direct driven self priming sea water pump
- Stainless steel water cooled exhaust mixer
- Air cleaner/intake silencer
- Self tensioning drive system
- Oil pressure & water temperature safety shutdown
- 120/240 V Generator
- 12 volt electric fuel pump
- Extra resilient four point isolation mounts
- “Easy Drain” oil change system removable/cleanable oil filter
- Front side service for easy maintenance
- Marine grade tinned wire w/ heat shrink terminals
- Remote start panel with hour meter and harness
Options:
- Ignition Protection Certification
- Sound Enclosures
- Full Instrumental Panel
- 20′ or 30′ Wire Harness
Specifications:
| Type | Vertical, Water-cooled 4 Cycle Diesel Engine |
| Dimensions | 24″ L x 21″ W x 22″ H (w/o sound enclosure) |
| 27.5″ L x 23.5″ W x 23″ H (w/ sound enclosure) | |
| Dry Weight | 290 lbs (w/o sound enclosure) |
| 330 lbs (w/ sound enclosure) | |
| # of Cylinders | 3 |
| Bore x Stroke | 2.83 x 2.90 In |
| Displacement | 898 CC |
| SAE net intermittent | 21/2800 HP/rpm |
| Combustion System | Three Vortex |
| Compression Ratio | 23:1 |
| Fuel Injection Pump | Bosch MD “mini” type |
| Nozzle | Bosch “throttle” type |
| Cooling System | Fresh Water Heat Exchanger |
| Lubricating System | Forced lubrication w/ filter |
| Fuel | #2 Diesel or equivalent |
| Lubricating Oil | Quality better than API service CD or CE class |
| Lubricating Oil Capacity | 4 U.S. qt |
| Starting System | 12V Battery |
| Charging System (optional) | 40 AMP |
| Fuel Line Diameter | 5/16″ |
| Return Line Diameter | 1/4″ |
| Raw Water Diameter | 5/8″ |
| Exhaust Diameter | 2″ |
| Output | 120/240 V |
| Output AMPS Intermittent | 80/40 AMPS |
| Output AMPS Continuous | 75/38 AMPS |
| Output Watts Intermittent | 9500 Watts |
| Output Watts Continuous | 9500 Watts |
